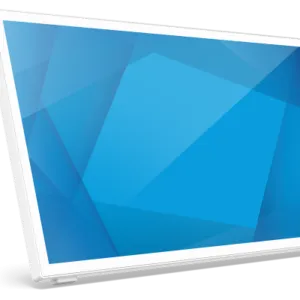

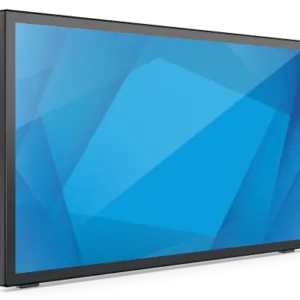

Elo 2470L 24″ Full HD Touchscreen Monitor
Price range: €480.95 through €525.63
-
23.8-inch Full HD (1920 × 1080) LED touchscreen display
-
PCAP 10-touch technology for smooth, accurate touch response
-
Available in black and white to suit different design aesthetics
-
Scratch-resistant clear or anti-glare glass surface options
-
Flexible stand adjustable from 20°–70° or VESA mount compatible
-
Multiple connectivity options: VGA, DisplayPort, HDMI
-
Dual built-in speakers for a complete multimedia experience
-
Low blue light & flicker-free technology for enhanced comfort
-
IK07-rated durability for continuous public use
-
Backed by Elo’s 3-year standard warranty
- Description
- Size Guide
- Additional information
- Reviews (0)
- Specifications
- Download
Description
Elo 2470L 24″ Full HD Touchscreen Monitor
The Elo 2470L 24-Inch Full HD Touchscreen Monitor delivers a commercial-grade interactive display with a sleek, minimalistic design that fits seamlessly into any business environment. Available in both black and white, this 70-Series monitor combines modern aesthetics, durable construction, and high-performance PCAP 10-touch technology to deliver an exceptional interactive experience for POS terminals, digital signage, self-service kiosks, document signing stations, and more.
Engineered for continuous public use, the Elo 2470L features a 1920 × 1080 Full HD LED display with TouchPro® PCAP technology, providing tablet-like responsiveness, wide viewing angles, and impeccable image clarity. Choose between clear or anti-glare scratch-resistant glass for optimal visibility in different lighting conditions.
The flexible stand allows you to adjust the display from 20° to 70° or collapse it completely for VESA mounting, giving you maximum installation versatility. With VGA, DisplayPort (DP), and HDMI connectors, plus dual built-in speakers, the 2470L is ready for seamless integration into modern business setups.
Additional comfort features like low blue light and flicker-free technology reduce eye strain, making this monitor ideal for long operating hours. The IK07 durability rating ensures reliable performance even in high-traffic commercial environments.
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
Additional information
| Options: | E510459, E266179, E511419 |
|---|
Be the first to review “Elo 2470L 24″ Full HD Touchscreen Monitor”
Black, clear – E510459
Black, anti-glare – E511419
White, anti-glare – E266179
Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (TouchPro? Projected Capacitive) – 10 Touch
Diagonal Size: 23.8” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 20.75″ x 11.67″ / 527.04 mm x 296.46 mm
Resolution: 1920 x 1080 @ 50, 60Hz
Other Supported Resolutions:
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50 60Hz
Viewing Angle: Horizontal: ?89? or 178? total / Vertical: ?89? or 178? total
Number of Colors: 16.7 million
Brightness (typical):
LCD Panel: 250 nits
TouchPro PCAP: 225 nits
Response Time-total (typical): 16 msec
Contrast Ratio: 1000:1
Touch Interface: USB
Surface Treatment: Clear or Anti-glare
On Screen Display:
Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
Controls: Menu, Power
Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
I/O Ports:
AC Input (IEC60320 C6)
Audio in/out
VGA
HDMI
DisplayPort
USB 2.0 Type B
2x USB 2.0 Type A
Speakers: Two x 2W internal speakers
Video:
VGA (Female DB-15 connector)
HDMI (receptacle type A)
DisplayPort
Input Video Frequency:
Horizontal: 30 ? 82KHz
Vertical: 50 – 75Hz
Power:
AC power input connector: (IEC 60320 C6)
AC input voltage range: 100-240VAC, 50/60Hz
Power Consumption (Typical):
Only display and touch function available:
ON (Default – 80% Brightness): 14.5 W
ON (Typical – 100% Brightness): 16.7 W
SLEEP: 0.5 W
OFF: 0.16 W
Monitor Dimensions (without Stand): 21.66″ x 12.96″ x 1.65″ / 550.2 mm x 329.3 mm x 41.8 mm
Shipping Box Dimensions: 24.80″ x 5.35″ x 16.46″ / 630 mm x 136 mm x 418 mm
Weight (Unpackaged): 10.58 lbs / 4.8 kg
Weight (Packaged): 15.65 lbs / 7.1 kg
Operating Temperature: 0?C to 40?C / 32?F to 104?F
Storage Temperature: -20?C to 60?C / -4?F to 140?F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit
Other Features:
Energy Star 8.0
TUV Rheinland (Flicker Free)
TUV Rheinland (Low Blue Light)
Power collection function via DDCCI
Warranty: 3-year
Extended Service Options:
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations:
Argentina AR certificate
Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI, PSE
International CB
Australia RCM
Russia EAC
Mexico CoC
RoHS, China RoHS, WEEE, REACH
Impact Protection: IK07
What’s in the Box:
2470L Touchmonitor
Quick Install Guide
HDMI cable
Touch USB cable
NA Power cable
EU Power cable
EEI Label (EU)
2x EEI Label (UK)
2x Replace foot cover
5x Cable tie
