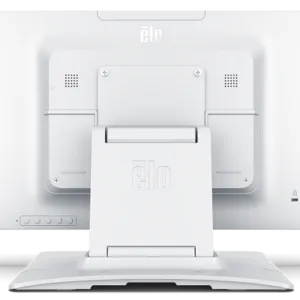

Elo 1502LM 15″ Medical Grade Touchscreen Monitor

Additional information

Part Number(s):
White With Stand – E542808
Black With Stand – E542617
White Without Stand – E967255
Black Without Stand – E967064

Enclosure Color: White or Black

Touch Technology & Capacity: PCAP (TouchPro? Projected Capacitive) – 10 Touch

Diagonal Size: 15.6” diagonal, Active matrix TFT LCD (LED)

Aspect Ratio: 16:9

Active Area (mm): 13.55″ x 7.62″ / 344.16 mm x 193.5 mm

Resolution: 1920 x 1080

Other Supported Resolutions:
640 x 480 @ 60Hz
640 x 400 @ 70Hz
720 x 400 @ 70Hz
800 x 600 @ 56, 60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 50, 60Hz
1280 x 800 @ 60Hz, 60HzRB
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1360 x 768 @ 60Hz
1366 x 768 @ 60Hz, 60Hz RB
1440 x 900 @ 60Hz, 60Hz RB
1680 x 1050 @ 60Hz, 60Hz RB
1920 x 1080 @ 50, 60Hz

Viewing Angle: Horizontal: ?80? or 160? total / Vertical: ?80? or 160? total

Number of Colors: 16.7 million

Brightness (typical):
LCD Panel: 250 nits
With PCAP: 225 nits

Response Time-total (typical): 30 msec

Contrast Ratio: 700:1

Touch Interface: USB

Surface Treatment: Anti-glare

On Screen Display:
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power

I/O Ports:
USB Type-C
Audio jack (Line-in)
VGA (Micro-HDMI female connecter)
HDMI
12V D/C input
3 x Micro-USB ports (Top, Left, Right)

Speakers: 2 x 2W internal speakers

Video:
Analog VGA
HDMI
USB Type-C (support DP Alt mode)
(Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues)
Input Video Horizontal Sync frequency range: 31.5 ? 82KHz
Input Video Vertical Sync (frame rate) frequency range: 50 ? 75Hz

Power:
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz

Power Consumption (Typical):
Monitor + adapter
ON: 9.5 W
SLEEP: 1.27 W
OFF: 0.2 W

Monitor Dimensions (without Stand): 9.62” x 15.23” x 1.28” / 244.39 mm x 386.96 mm x 32.4 mm

Monitor Dimensions (with Stand): 11.21” x 15.23” x 7.84” / 284.65 mm x 386.96 mm x 199.12 mm

Shipping Box Dimensions:
With Stand: 8.03” x 17.76” x 13.54”/ 204 mm x 451 mm x 344 mm
Without Stand: 6.89″ x 17.76″ x 12.60″ / 175 mm x 451 mm x 320 mm

Weight (Unpackaged):
With Stand: 6.79 lbs / 3.08 kg
Without Stand: 3.62 lbs / 1.64 kg

Weight (Packaged):
With Stand: 11.24 lbs / 5.1 kg
Without Stand: 7.47 lbs / 3.39 kg

Operating Temperature: 0?C to 40?C / 32?F to 104?F

Storage Temperature: -20?C to 60?C / -4?F to 140?F

Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)

MTBF: 50,000 hours demonstrated

Mounting Options: VESA 4-hole 75mm and 100mm mounting interface on rear of unit

Warranty: 3-year

Extended Warranty Options:
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125

Regulatory approvals and declarations:
Canada cUL, IC
China CCC
Europe CE
United Kingdom UKCA
Taiwan BSMI
Korea, KCC, e-standby
United States UL, FCC
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico NOM
India BIS
RoHS, China RoHS, WEEE, REACH
UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1

Ingress Protection: IP22 entire enclosure

Impact Protection: IK07

What’s in the Box:
Touchmonitor
Quick Install Guide
HDMI cable
Power brick (E323104 or E795350)
2x cable clamps
2x Tie wraps
EEI Label
USB Cable (USB Type-A to Type-C)
NA Power cable
EU Power cable
3x screws (M3x8mm) for cable clamps
2x screws (M3x10mm) for cable doors

Optional Peripherals: PCAP Stylus Pen – Elo P/N: E066148

Stands, Mounts & Kits:
Wall Mount Kit (75mm or 100mm VESA)  Elo P/N: E143088
Tabletop Stand for 15” Display (Black) – Elo P/N: E044162
Tabletop Stand for 15” Display (White) – Elo P/N: E765019
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Pole Mount  6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount  12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount  18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
North America Power Cable  C13 – Elo P/N: E593865
Australia Power Cable  C13 – Elo P/N: E594067
Europe Power Cable  C13 – Elo P/N: E594264
Korea Power Cable  C13 – Elo P/N: E594466
China Power Cable  C13 – Elo P/N: E594670
Taiwan Power Cable  C13 – Elo P/N: E594869
Japan Power Cable  C13 – Elo P/N: E793799
Power Brick ? 60W  1502LM – Elo P/N: E181106

ELO_1502LM_DS_21112AES00151
