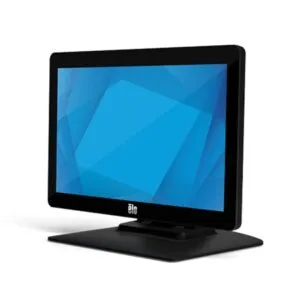

Elo 1502L Touchscreen Monitor

Additional information

Part Number(s):PCAP FHD USB-C With Stand (Worldwide) – E155645
PCAP FHD USB-C Without Stand (Worldwide) – E125496
PCAP HD With Stand (Worldwide) – E318746
Enclosure Color: Black
Touch Technology & Capacity: PCAP (Projected Capacitive) – 10 Touch
Diagonal Size: 15.6” diagonal, Active matrix TFT LCD (LED)
Monitor Thickness: 1.28″ / 32.4 mm panel depth
Aspect Ratio: 16:9
Active Area (mm):13.55″ x 7.62″ / 344.16 mm x 193.5 mm
Resolution: FHD model: 1920 x 1080 / HD model: 1366 x 768
Other Supported Resolutions:
FHD model:
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 800 60Hz, 60Hz RB
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz
HD model:
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1360 x 768 60Hz
Viewing Angle:?FHD Model: Horizontal: ?80? / 160? total; Vertical: ?80? / 160? total
HD Model: Horizontal: ?45? / 90? total; Vertical: -35?/ +15? / 50? total
Number of Colors: FHD Model: 16.7M; HD Model: 262K
Brightness (typical):
FHD model
LCD Panel: 250 nits
PCAP + DC power: 225 nits
PCAP + USB-C 5V power: 180 nits
HD model
LCD Panel: 220 nits
PCAP + DC power: 198 nits
Response Time-total (typical): FHD model: 25 ms / HD model: 10 ms
Contrast Ratio: FHD Models: 700:1 / HD Models: 400:1
Touch Interface: USB
Surface Treatment: Anti-glare
On Screen Display:
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
Lockouts: OSD, Power
I/O Ports:
FHD Model:
1 x USB Type-C
1 x Audio jack (Line-in)
1 x VGA (Micro-HDMI female connecter)
1 x HDMI
1 x 12V D/C input
3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
HD Model:
1 x USB Type-B
1 x Audio jack (Line-in)
1 x VGA (Mini-VGA female connecter)
1 x HDMI
1 x 12V D/C input
3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers: 2 x 2W internal speakers
Video:?
FHD Model:
Analog VGA
HDMI
USB Type-C
*Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues
HD Model:
Analog VGA
HDMI
Input Video Format: Horizontal: 31.5 – 82 KHz / Vertical: 50 – 75 Hz
Power:
FHD Model:
Option 1: USB Type-C Input range: 5V?5% 3A/9V?5% 3A/15V?5% 1.8A/20V?5% 1.35A
Option 2: External DC Adapter 12V/36W in box
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz
HD Model:
External DC Adapter 12V/36W in box
Monitor input power connector: Coaxial power jack (2.5mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.5mm (+0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical):
FHD Model (monitor + adapter):
ON: 12 W
SLEEP: 2 W
OFF: 0.2 W
HD Model (monitor + adapter):
ON: 10.2 W
SLEEP: 0.4 W
OFF: 0.2 W
Monitor Dimensions (without Stand): 9.62″ x 15.23″ x 1.28″ / 244.39 mm x 386.96 mm x 32.4 mm
Monitor Dimensions (with Stand): 11.21″ x 15.23″ x 7.84″ / 284.65 mm x 386.96 mm x 199.12 mm
Shipping Box Dimensions: With Stand: 8.03″ x 17.76″ x 13.54″ / 204 mm x 451 mm x 344 mm
Without Stand: 6.89″ x 17.76″ x 12.60″ / 175 mm x 451 mm x 320 mm
Weight (Unpackaged): With Stand: 6.72 lbs / 3.05 kg
Without Stand: 3.62 lbs / 1.64 kg
Weight (Packaged): With Stand: 11.05 lbs / 5.01 kg
Without Stand: 7.47 lbs / 3.39 kg
Operating Temperature: 0?C to 40?C / 32?F to 104?F
Storage Temperature: -20?C to 60?C / -4?F to 140?F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
MTBF: 50,000 hours demonstrated

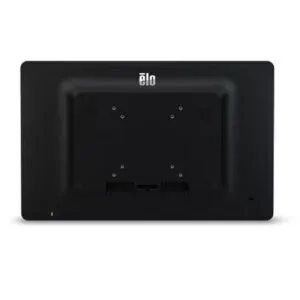

Mounting Options: VESA 4-hole 75mm and 100mm mounting interface on rear of unit
Warranty: 3-year
Extended Warranty Options:
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations: Canada cUL, IC
Europe CE
Japan VCCI
United States UL, FCC
China CCC
Korea, KCC, e-standby
Australia RCM
Mexico NOM
Taiwan BSMI
International CB
RoHS, China RoHS, WEEE, REACH
India BIS
Russia EAC
Ingress Protection: IPX1 for front side
Impact Protection: FHD Model: IK07
What’s in the Box:
FHD Model:
Touchmonitor
Quick Install Guide
HDMI cable
Power brick
2x cable clamps
2x tie wraps
EEI Label
USB Cable (USB Type-A to Type-C)
NA Power cable
EU Power cable
3x screws (M3x8mm) for cable clamps
2x screws (M3x10mm) for cable doors
HD Model:
Touchmonitor
Quick Install Guide
HDMI cable
Power brick
2x cable clamps
2x tie wraps
User Manual CD
Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
USB cable (USB Type A plug to USB Type B plug)
Audio cable
4x screws
Optional Peripherals:
Magnetic Stripe Reader (MSR) ? Elo P/N: E001002
NFC/RFID Reader ? Elo P/N: E001004
Fingerprint Scanner ? Elo P/N: E134286
Barcode Reader (BCR) ? Elo P/N: E093433
2D Barcode Scanner ? Elo P/N: E926356
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) – Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) – Elo P/N: E201088
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Temperature Sensor Pro ? Elo P/N: E534879
Stands, Mounts & Kits:
Wall Mount Kit (75mm or 100mm VESA) ? Elo P/N: E143088
Elo Backpack? – Elo P/N: E611864
Elo Backpack? 3.0 – Elo P/N: E901355
Short Tabletop Stand for 10” I-Series – Elo P/N: E160104
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Pole Mount ? 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount ? 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount ? 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
1.8m Cable Kit (HD Model only) – Elo P/N: E210789
3m Cable Kit (HD Model only) – Elo P/N: E210606
Power Brick Kit ? 1.8m Power Cable (HD Model only) – Elo P/N: E211174
Power Brick Kit ? 3m Power Cable (HD Model only) – Elo P/N: E210973
1.8m Power USB Cable (HD Model only) – Elo P/N: E457742
3m Power USB Cable (HD Model only) – Elo P/N: E209775
Wallaby? POS Stand (Black) – Elo P/N: E949536
Wallaby? POS Stand (White) – Elo P/N: E353758
USB-C to USB-C Cable Kit ? Elo P/N: E710364
VGA-DB15 to Micro Cable Kit ? Elo P/N: E710549
DVI-D to HDMI Cable Kit ? Elo P/N: E538507
Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260
1.8 m USB-C Cable Kit ? Elo P/N: E408388
